Repairing the equatorial platform

By -
Today, the replacement motor for my Tom Osypowski equatorial platform arrived today.  It was an easy fix to remove the old (broken) motor, and install the new one, once I could find the correct (American) screwdrivers.  After a small test, everything seems to work fine again.

I will install the 35 cm Dobsonian on the equatorial platform, but the groundboard is not large enough to fit on the platform, so I need to do some changes first... I will also add digital setting circles (encoders) to be able to use the Argo Navis on the 35cm Dobsonian.

The 18'' Obsession will be updated with a ServoCAT.  This will update the telescope to a full goto system.  Because the equatorial platform is removed from the Obsession, the height of the telescope decreased with 30cm, which makes a huge difference on such a large telescope.

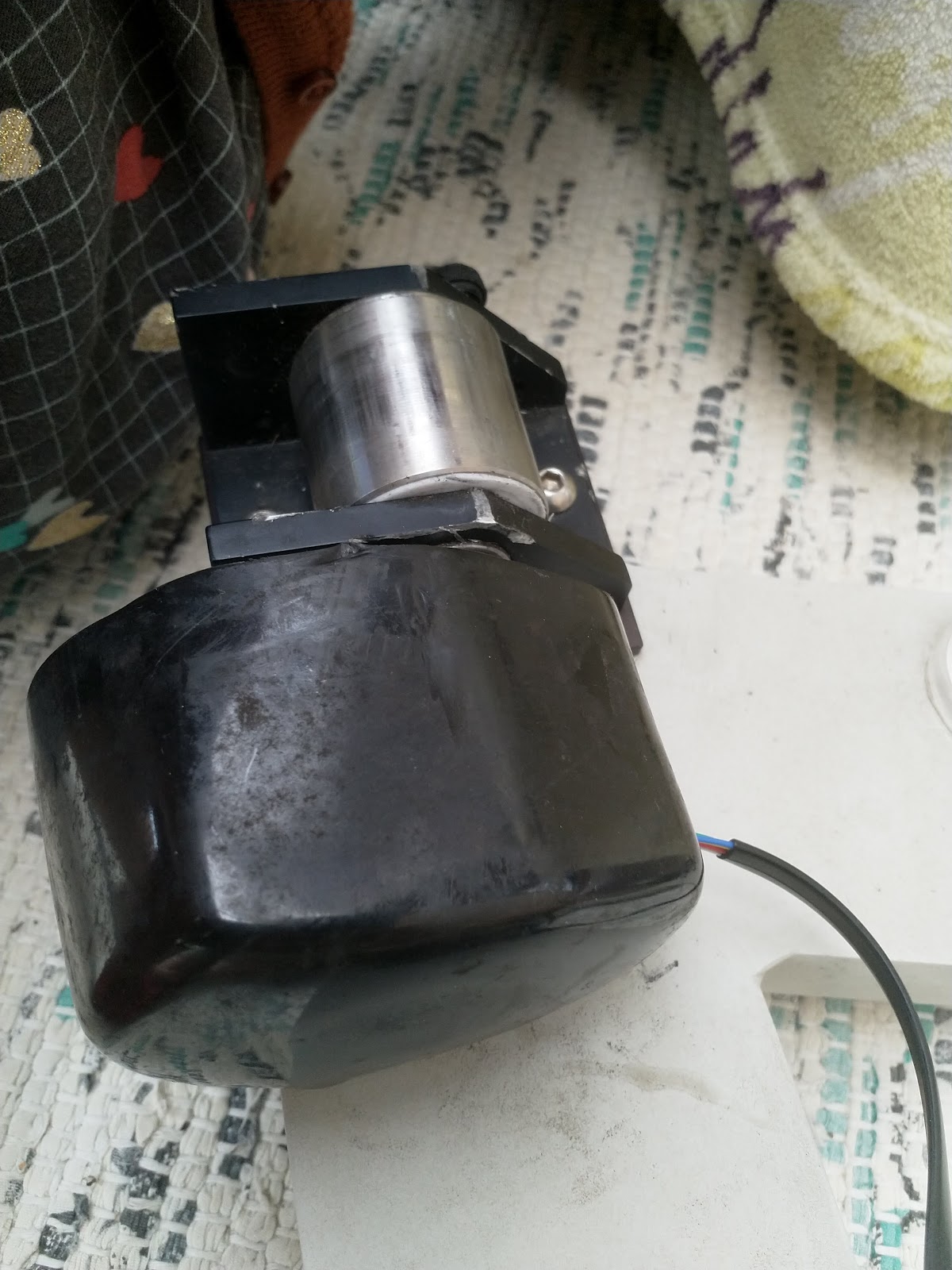

The replacement motor for the equatorial platform.
The replacement motor for the equatorial platform.

The installed motor for the equatorial platform



Location: 3370 Roosbeek, België
